Product Code:
202510S

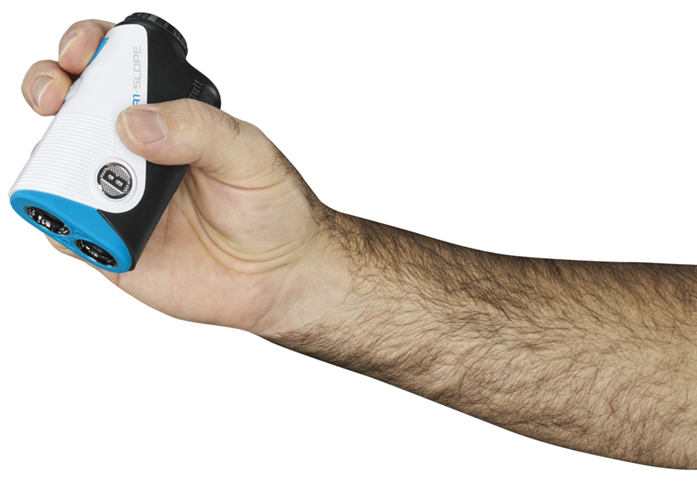

Bushnell A1 Slope Laser Range Finder is packed with features including Bushnell Patented Slope Technology, Rechargeable battery, and IPX6. The small lightweight design makes this Laser Rangefinder a perfect companion for all golfers on the course.
DISPLAY INDICATORS
The A1 Slope display incorporates the following indicators:
1. Aiming Circle (surrounding crosshairs
indicate laser transmission)
2. Battery Level
3. Distance Units (Yards/Meters)
4. “Play As” Distance, based on Slope
5. Slope (% grade)
6. Line of Sight Distance / Primary Display
BATTERY LEVEL INDICATOR
The Battery Indicator shows the remaining power level:
• Full charge
• Approx. 2/3 battery life remaining
• Approx. 1/3 battery Life remaining
• Battery Indicator Blinks - Unit needs recharging
ADJUSTING THE EYEPIECE
The A1 Slope is equipped with an adjustable Fast Focus eyepiece diopter dial (+/- 3.5 diopter adjustment) that allows you to focus the displayed data and icons relative to the viewed image from the monocular optics. Rotate the eyepieceuntil the display is in focus.
ACTIVE LASER
Crosshairs surrounding the aiming circle indicate that the laser is transmitted. Once a range is acquired, you canrelease the Power/Fire button. The crosshairs surrounding the circle will disappear once the Power/Fire button is released (i.e., the laser is not transmitting).
USING SETUP MODE
SETTING DISTANCE UNITS (Y OR M)
Press and hold the Mode button (A) to enter SETUP Mode. Meters are the default setting. Once the “Y” is blinking, press the mode button to cycle between yards/meters. Press the Power/Fire button (B) to confirm selection. After completing this setting, the next setting will be “Turning Slope On and Off”.
TURNING SLOPE ON AND OFF
Press and hold the Mode button (A) to enter SETUP Mode. The Primary Display (6) will display “On” or “OFF” when the Mode button is pressed. Press the Power/Fire button (B) to confirm selection.
VIEW SOFTWARE VERSION
When the SETUP and ABOUT icons are visible the software version is shown. In this example,the software version is 1.0.34. Press the power button to return to normal operation.
SLOPE TECHNOLOGY
The Slope +/- mode will automatically compute an angle compensated range based on distance and Slope determined by the laser rangefinder and built-in inclinometer. This data is combined with internal algorithmic formulas dealing with average club use and ball trajectories. The angle compensated range provides direction on how to play the shot.
